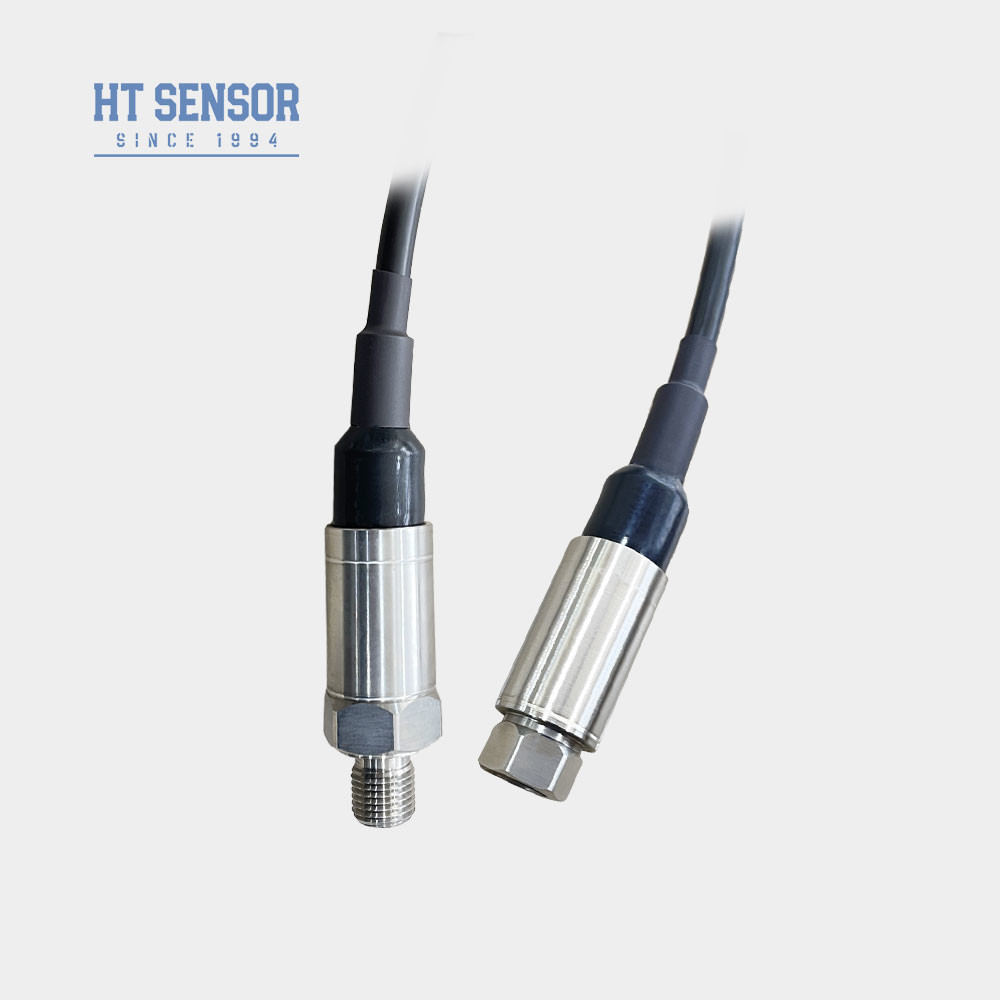

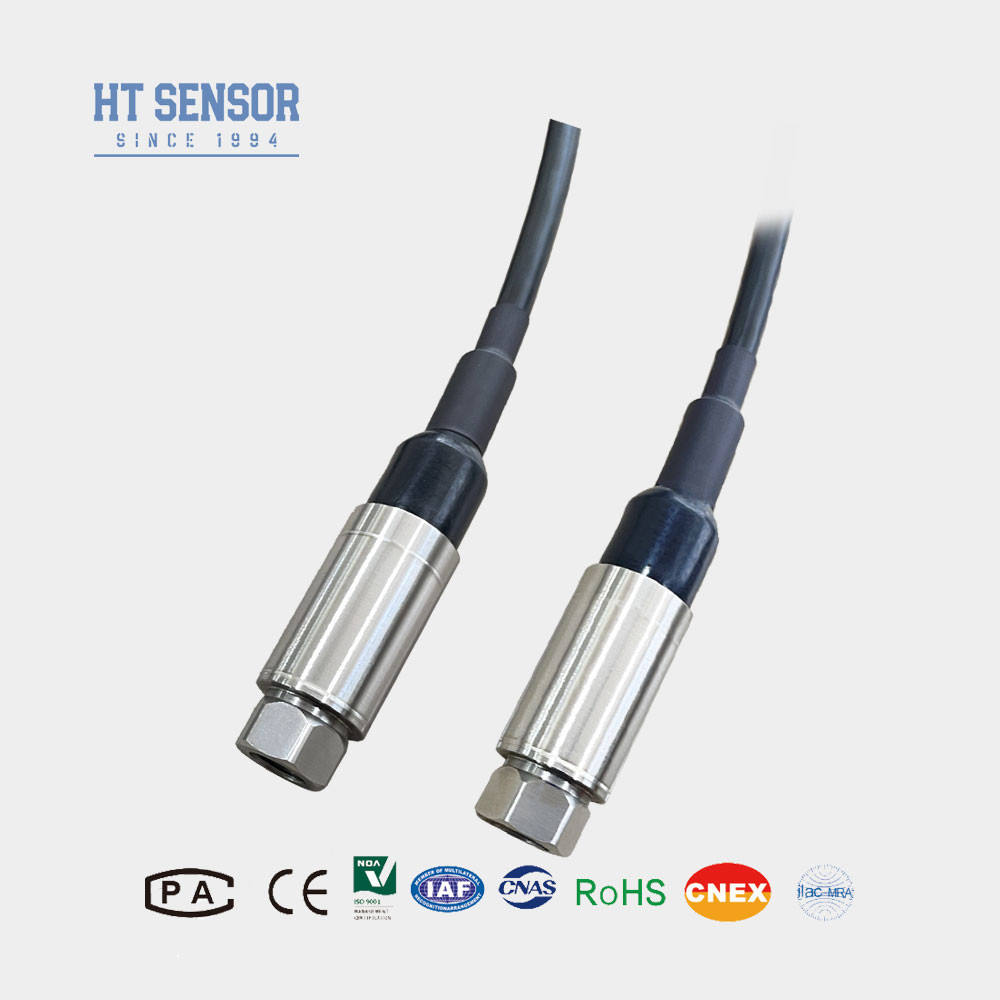

The BP156 Small industrial pressure sensor transmitter is a compact rod-shaped pressure transmitter. It utilizes a high-reliability silicon piezoresistive pressure sensor as its sensitive core and undergoes temperature compensation, digital circuit correction, and signal conditioning to output standard industrial applications and network signals. It features an IP68 waterproof structure. Each product component is meticulously designed, screened, validated through processes, cured, subjected to cyclic loading stress relief, aging tests, and environmental simulation tests to ensure stability and reliability.
Product Features of mini Industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of mini Industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of mini Industrial pressure sensor transmitter: |
| Measurement Range |
0kPa ~ 10kPa…20MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis |
0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability |
±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex ia IIC T6 Ga |
| Protection Rating |
IP65 |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
- Product Selection and Usage Reminders:
- Ensure compatibility between the process medium and wetted parts.
- Explosion-proof models do not include digital displays.
- Install lightning protection and reliable grounding for stable operation.
- Use EPDM O-rings for sub-zero (-20°C) operating temperatures.
- Cable not included by default; specify PE, PVC or PTFE if required.
- Inform us of special requirements like vibration, impact or EMI.
| Order Guide |
| BP15X |
Analog Pressure Transmitter |
| |
Code |
Outline Construction |
| 5 |
Packard plug |
6 |
Sealed Direct Output Cable 1.5 meters |
| 7 |
Mini Hirschmann Connector |
8 |
Large Hirschmann Connector |
| |
Measurement Range |
0kPa ~ 10kPa…5MPa |
(0-X)Kpa
or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
|
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Others(¢50.4 Flange) |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 |
| B3 |
Cable Sealed Outlet 1.5 meters |
| B4 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
